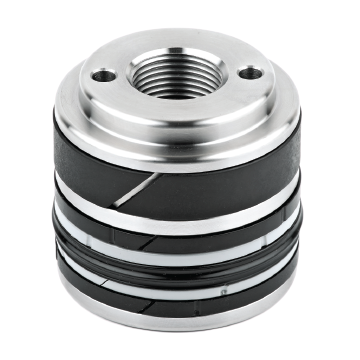

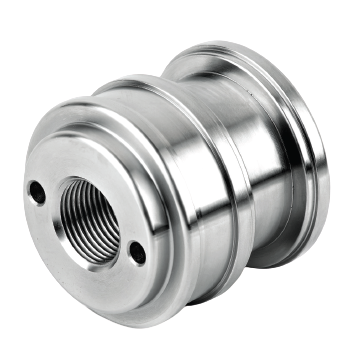

1040 / 1050 Çelik Piston Tek Yataklamalı Vidalı Tip

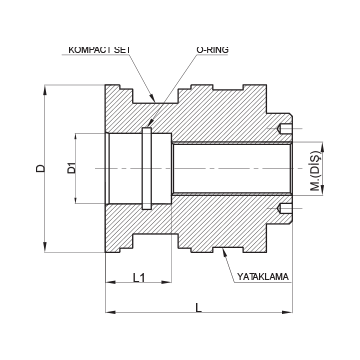

| ÜRÜN KODU | KOMPACT SET | YATAKLAMA | ORING | D | D1 | L | L1 | DİŞ |
|---|---|---|---|---|---|---|---|---|
| YP-50 | 50x38x20,5x4,20 | 45x50x15 | 24,99x3,53 | 50 | 25 | 65 | 30 | 22x1,5 |
| YP-60 | 60x48x20,5x4.20 | 55x60x15 | 29,75x3,53 | 60 | 30 | 65 | 30 | 27x2 |
| YP-63 | 63x51x20,5x4,20 | 58x63x9.5 | 29,75x3,53 | 63 | 30 | 65 | 30 | 27x2 |
| YP-70 | 70x58x20,5x4.20 | 65x70x15 | 29,75x3,53 | 70 | 30 | 65 | 30 | 27x2 |
| YP-80 | 80x66x22,4x5,20 | 75x80x15 | 34,52x3,53 | 80 | 35 | 70 | 30 | 30x2 |
| YP-90 | 90x76x22,4x5,20 | 85x90x15 | 39,70x3,53 | 90 | 40 | 70 | 30 | 35x2 |
| YP-100 | 100x86x22,4x5,20 | 95x100x15 | 45x4 | 100 | 45 | 70 | 30 | 40x2 |
| YP-110 | 110x96x22,4x5,20 | 105x110x15 | 45x4 | 110 | 45 | 70 | 30 | 40x2 |
| YP-115 | 115x101x22,4x5,20 | 110x115x15 | 45x4 | 115 | 45 | 70 | 30 | 40x2 |
| YP-120 | 120x106x22,4x5,20 | 115x120x15 | 50x4 | 120 | 50 | 70 | 30 | 45x2 |
| YP-125 | 125x103x26,5x5,10 | 120x125x15 | 60x4 | 125 | 60 | 70 | 30 | 50x2 |
| YP-130 | 130x105x25,4x6,35 | 125x130x15 | 60x4 | 130 | 60 | 70 | 30 | 50x2 |
| YP-140 | 140x123x26,5x7,20 | 135x140x15 | 60x4 | 140 | 60 | 80 | 30 | 55x2 |
| YP-150 | 150x125x25,4x6,35/1 | 145x150x15 | 65x4 | 150 | 65 | 80 | 30 | 60x2 |
| YP-160 | 160x143x26,5x7,20 | 155x160x15 | 65x4 | 160 | 65 | 80 | 30 | 60x2 |
| YP-170 | 170X145X25,4X12,70 | 165X170X15 | 75x4 | 170 | 85 | 90 | 30 | 80X2 |
| YP-180 | 180x163x26,5x7,20 | 175x180x15 | 75x4 | 180 | 85 | 80 | 30 | 70x2 |
| YP-200 | 200x175x25,40x12,70/1 | 195x200x15 | 80x5 | 200 | 80 | 85 | 35 | 75x2 |
| YP-220 | 220x190x35,40x6,35/1 | 215x220x15 | 100x5 | 220 | 100 | 90 | 50 | 95x2 |
| YP-250 | 250x225x25,40x12,70 | 245x250x15 | 100x5 | 250 | 100 | 90 | 50 | 95x2 |
